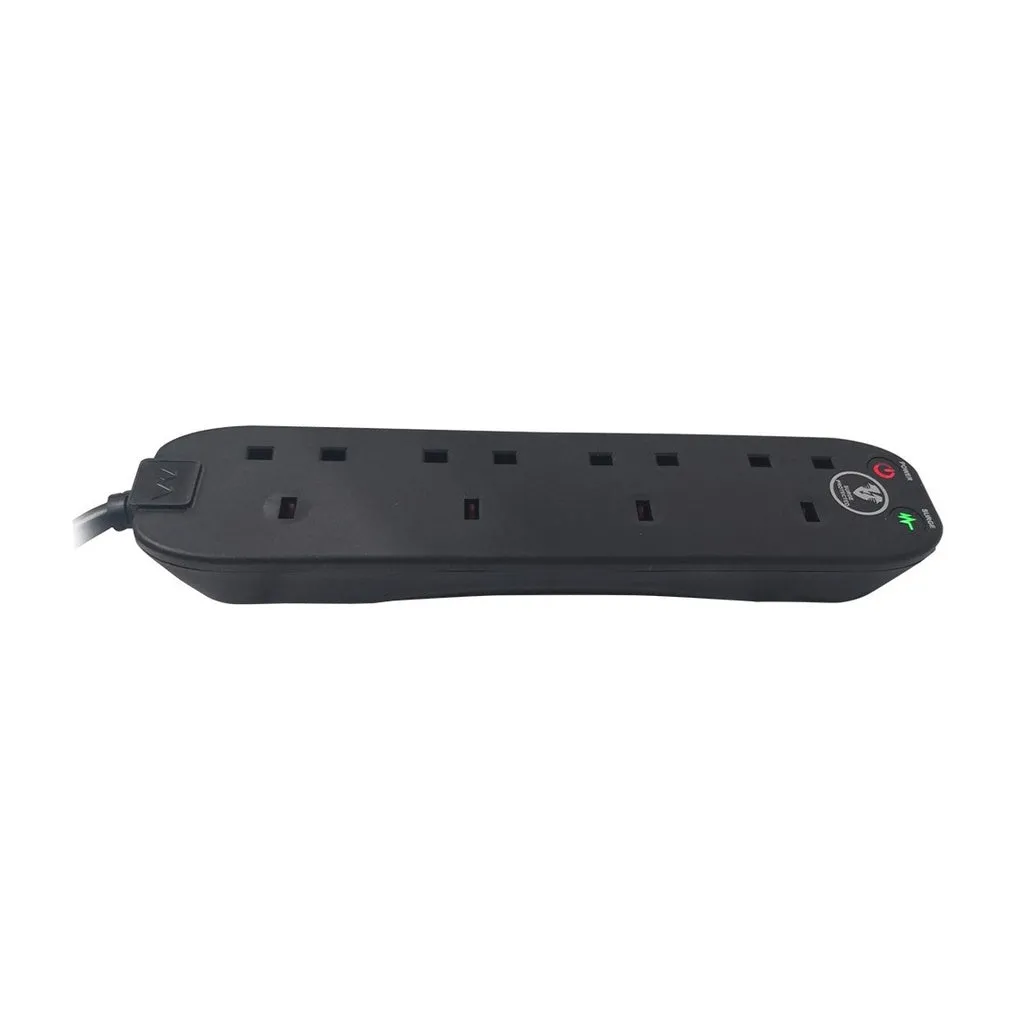

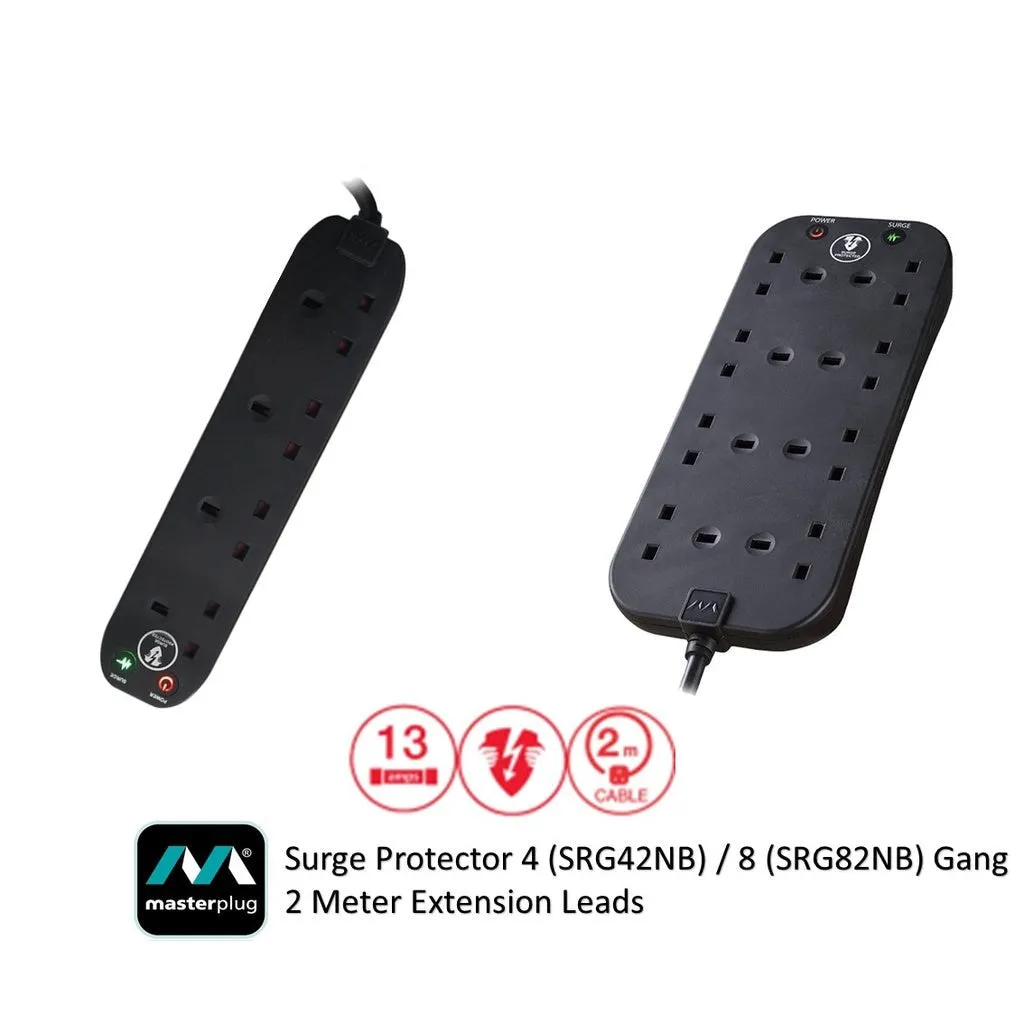

SRG42NB-MPA
FEATURES
- Plug four items safely into one socket
- Protects valuable electrical equipment from surges and spikes
- Safety shuttered sockets
- LED power and surge indicators
- Rounded slimline appearance
- Wall fixing capability
- Non-rewireable
Technical Data
Maximum Surge Energy : 370 Joules
Maximum Surge Current : 12,000 Amps
Protection Type : 2 x 14 Mov Gas Tube
Three Channel : L-N, L-E, N-E
Clamping Voltage : 925 Volts
Response Time : <25nS
Power Indicator : Yes - Red
Surge Indicator : Yes - Green
Uc : 275V~
Uoc : L/N-PE, L-N Uoc:4KV
Up : L/N-PE, L-N:Up=2.2KV

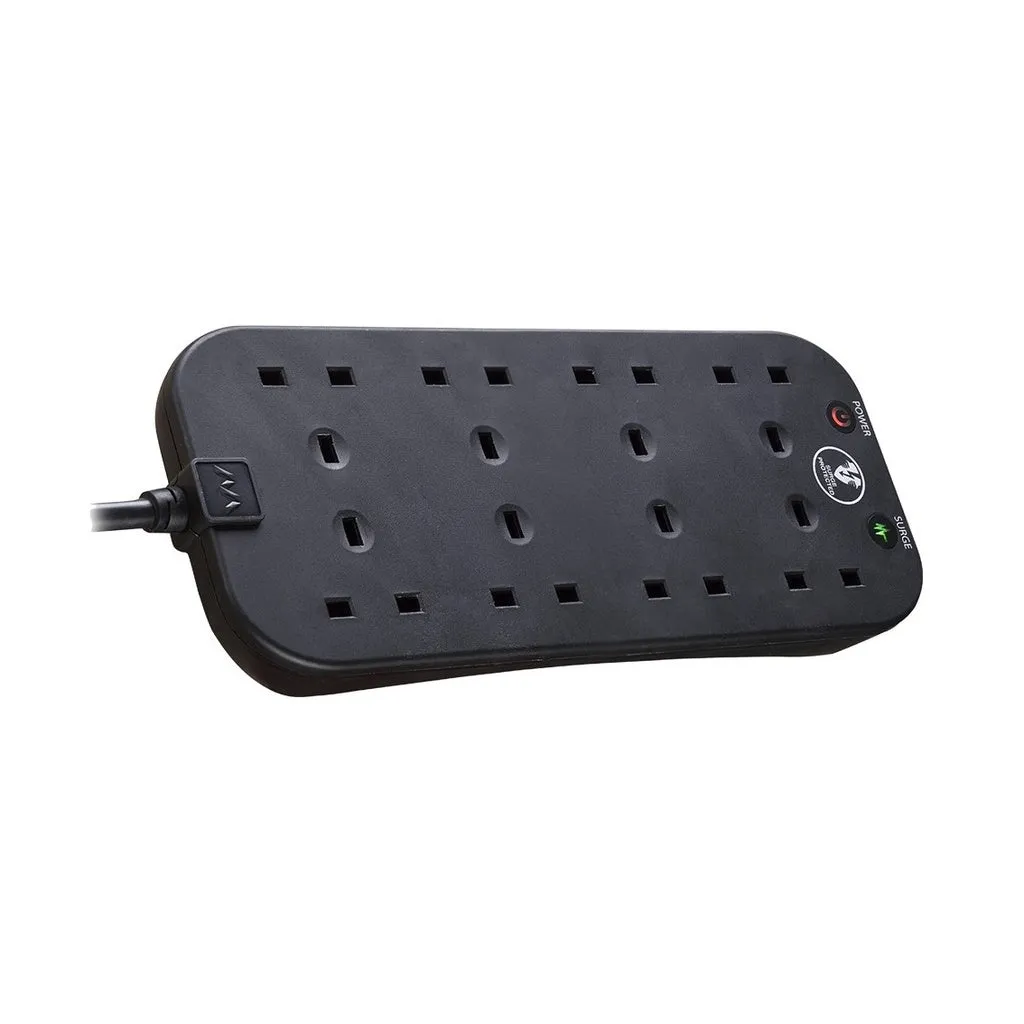

SRG82NB-MPA
FEATURES
Plug eight items safely into one socket
Protects valuable electrical equipment from surges and spikes
Safety shuttered sockets
LED power and surge indicators
Rounded slimline appearance
Wall fixing capability
Non-rewireable
Technical Data
Maximum Surge Energy : 370 Joules
Maximum Surge Current : 12,000 Amps
Protection Type : 2 x 14 Mov Gas Tube
Three Channel : L-N, L-E, N-E
Clamping Voltage : 925 Volts
Response Time : <25nS
Power Indicator : Yes - Red
Surge Indicator : Yes - Green
Uc : 275V~
Uoc : L/N-PE, L-N Uoc:4KV
Up : L/N-PE, L-N:Up=2.2KV
SAFETY INSTRUCTION
Do - Uncoil cable before use
Do - Position the cable carefully to avoid accidents
Don't - Use in wet conditions
Don't - Allow heavy tools etc to hang unsupported on the cable or from the socket
Don't - Remove the 13 amp plug and wire directly into a mains supply
Don't - Exceed the total maximum load of 13 amps = 3120 Watts 220-240 Volts a.c.
