Fitment Information

• Subaru BRZ (2022, 2023)

• Toyota 86 (2022, 2023)


Specs & Features

• Difference between F-Spec and FR-Spec:
• More aggressive shock valve
• Fluid viscosity
• 5W for F-Spec
• 20W for FR-Spec
• Shim stack
• Stiffer spring rates

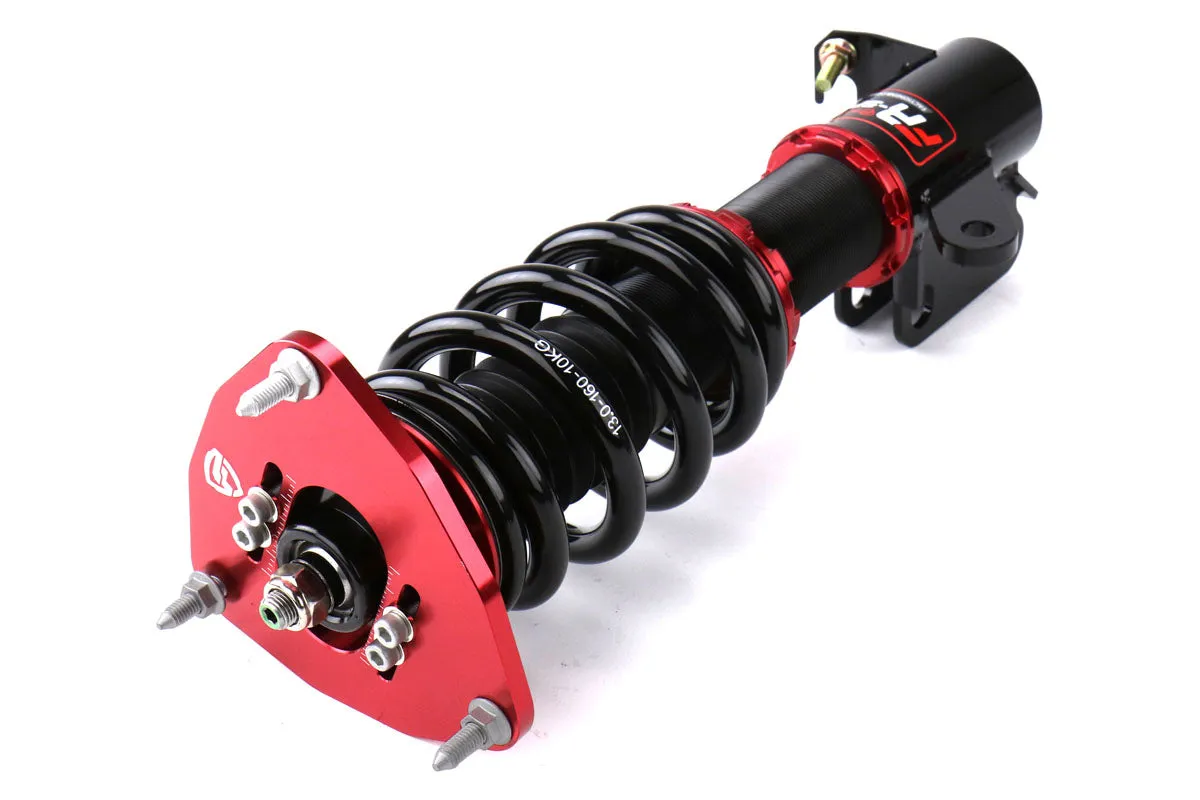

• Pillowball aluminum front top-hats
• 32-click adjustable monotube shock with internal piston and damping stack tuned for aggressive driving.
• High Temperature/ higher stability shock fluid to better suit circuit driving.
• Adjustable Aluminum upper pillow ball mounts to reduce suspension deflection under aggressive driving conditions while allowing for fine alignment adjustments.

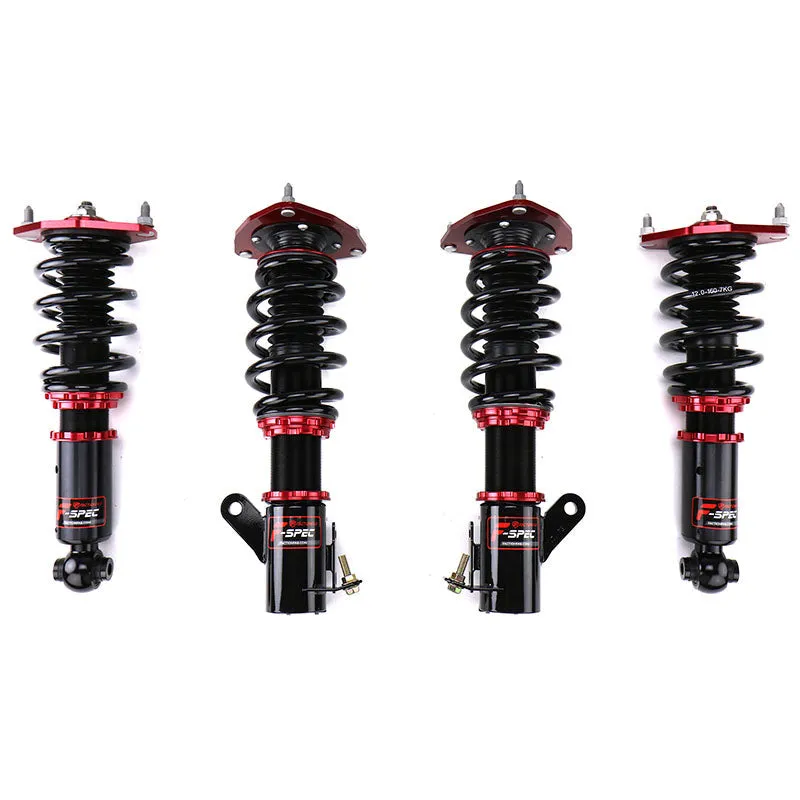

• F-Spec:
• Adjustable: Yes
• Camber Adjustable: No
• Caster Adjustable: No
• Dampening Adjust Type: 32-Click
• Damper Type: Monotube
• Drop Height Front: 0.1-2.4in
• Drop Height Front Metric: 2-62mm
• Drop Height Rear: 0.1-1.9in
• Drop Height Rear Metric: 3-48mm
• Height Adjustable: Yes
• Independent Height Adjustable: Yes
• Spring Rate Front: 392lbs/in
• Spring Rate Front Metric: 7Kg/mm
• Spring Rate Rear: 392lbs/in
• Spring Rate Rear Metric: 7Kg/mm
• Top Hats Included: Yes
• Increased spring rates and shock valving over stock suspension with emphasis on street performance while not jeopardizing ride quality and comfort
• 32-click adjustable monotube shocks allow for stock-like ride quality on the soft setting while providing enough adjustment to stiffen up the ride for the weekend track days or canyon drives
• The adjustment allows customers to fine-tune ride quality from soft too stiff in order to meet their road surface and driving environmental needs

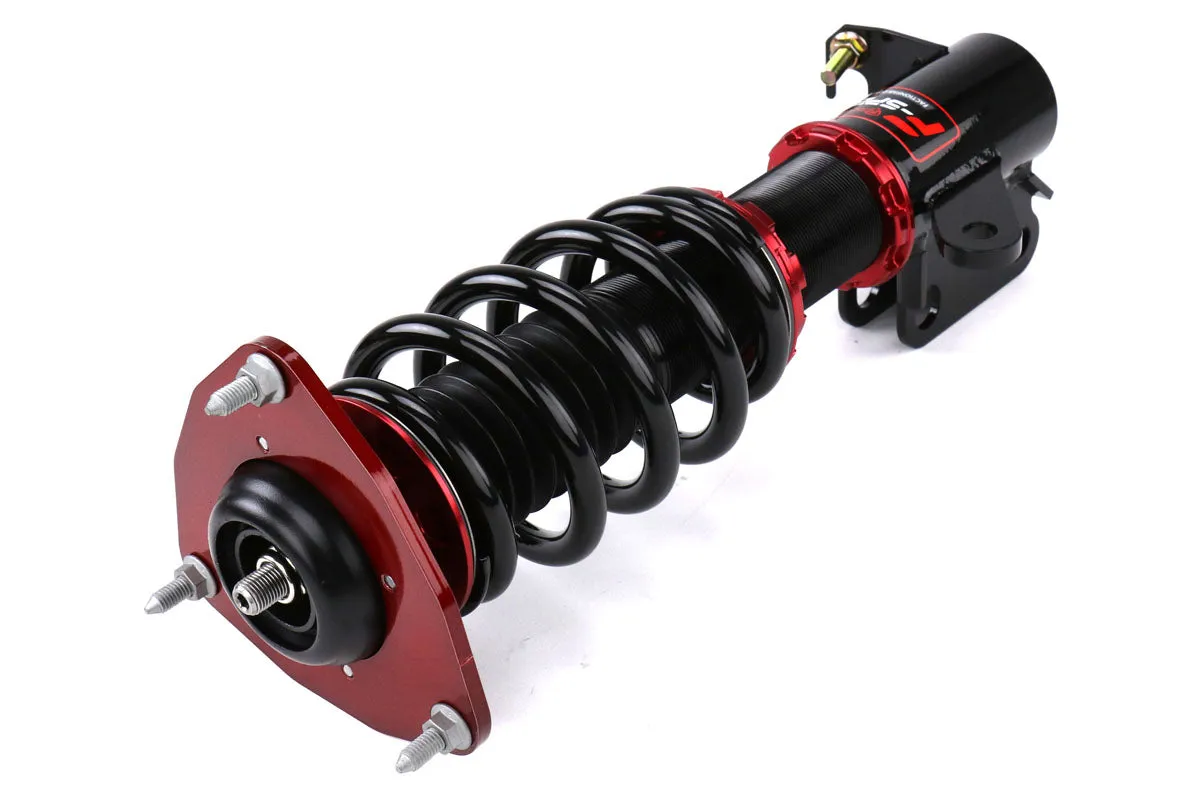

• Rubber isolated top-hats feature a high durometer rubber mount to reduce deflection while isolating unwanted minor vibrations and road imperfections

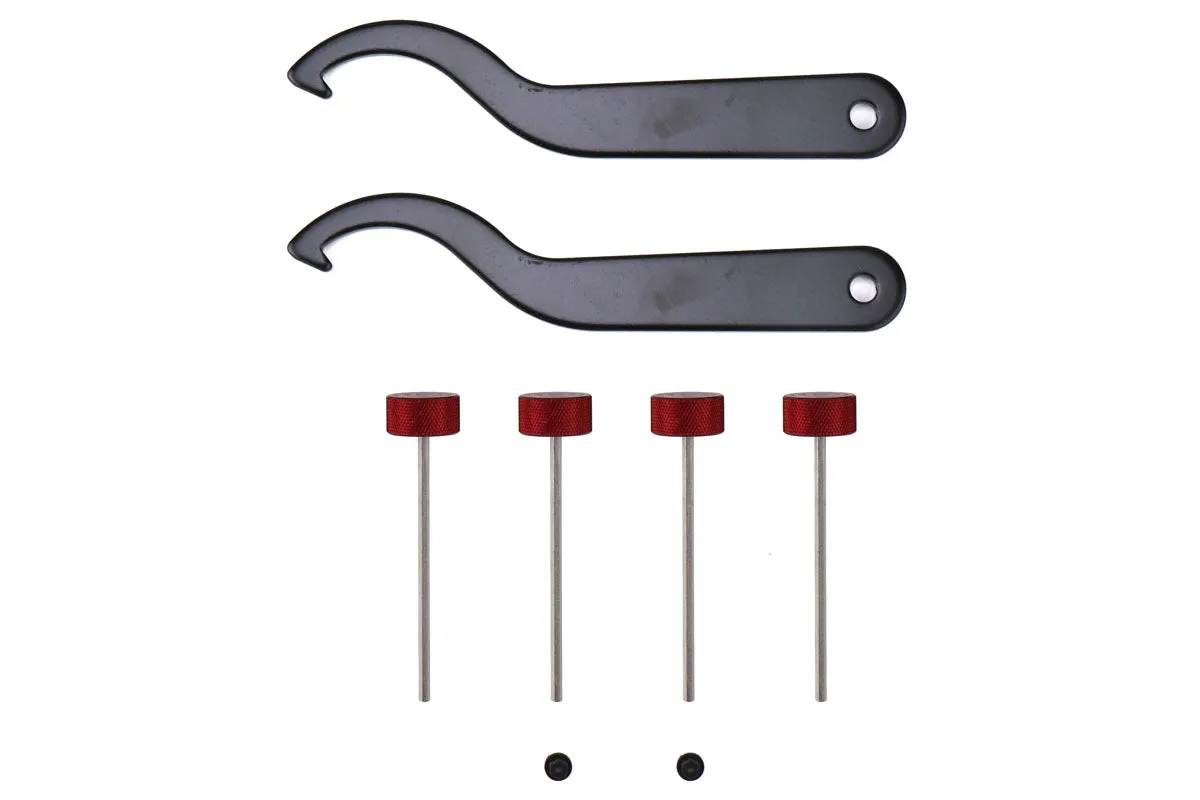

• Includes height adjustment tools
• Includes damping adjustment tools
• FR-Spec:
• Adjustable: Yes
• Camber Adjustable: Front Only
• Caster Adjustable: No
• Dampening Adjust Type: 32-Click
• Damper Type: Monotube
• Drop Height Front: 0.2-1.9in
• Drop Height Front Metric: 5-49mm
• Drop Height Rear: 0.1-1.9in
• Drop Height Rear Metric: 3-48mm
• Height Adjustable: Yes
• Independent Height Adjustable: Yes
• Spring Rate Front: 560lbs/in
• Spring Rate Front Metric: 10Kg/mm
• Spring Rate Rear: 560lbs/in
• Spring Rate Rear Metric: 10Kg/mm
• Top Hats Included: Yes
• Designed specifically for performance driving, the FR-Spec coilovers feature an increased spring rate and increased damping coefficient in the shocks over the F-Spec to provide ultimate handling and vehicle control under aggressive driving conditions.

Product Description

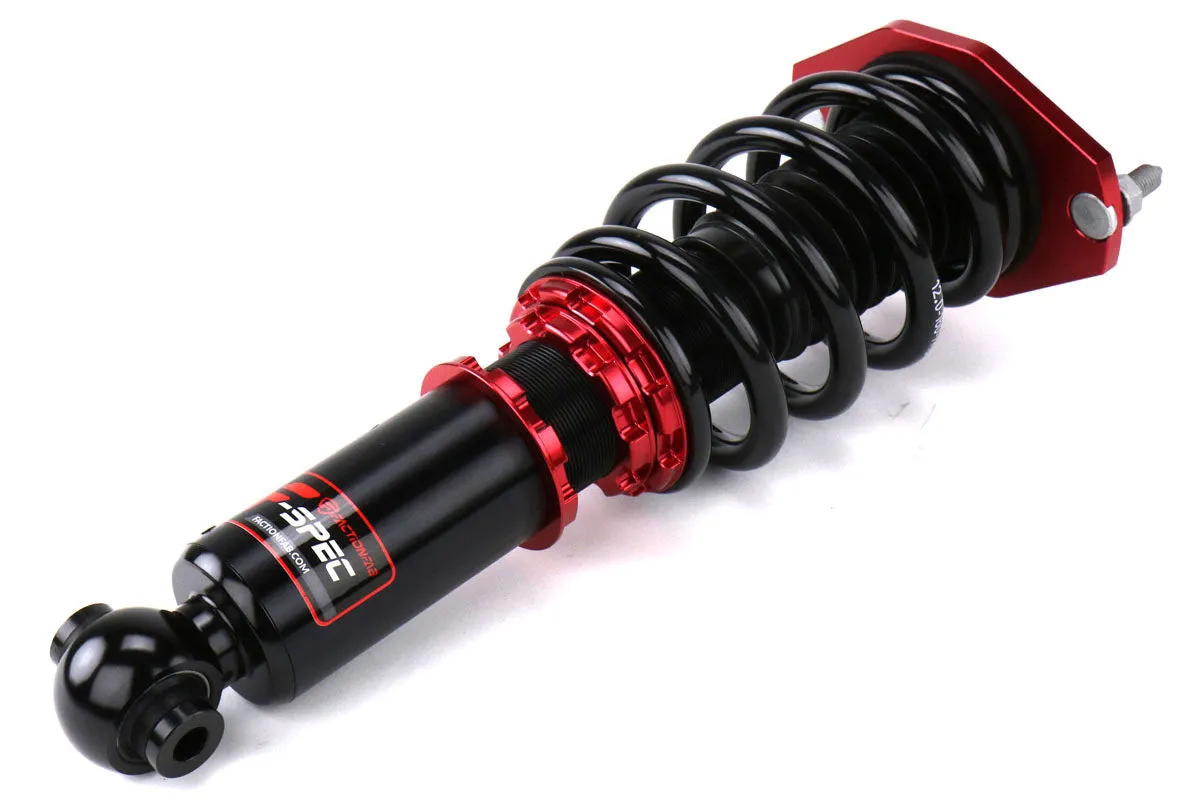

F-Spec:

• These are ideal for those of you looking to achieve that aggressive lowered look while improving the handling and steering response of your vehicle. These have been engineered using the right spring rates so that you can have an efficient suspension package without compromising the overall ride quality.

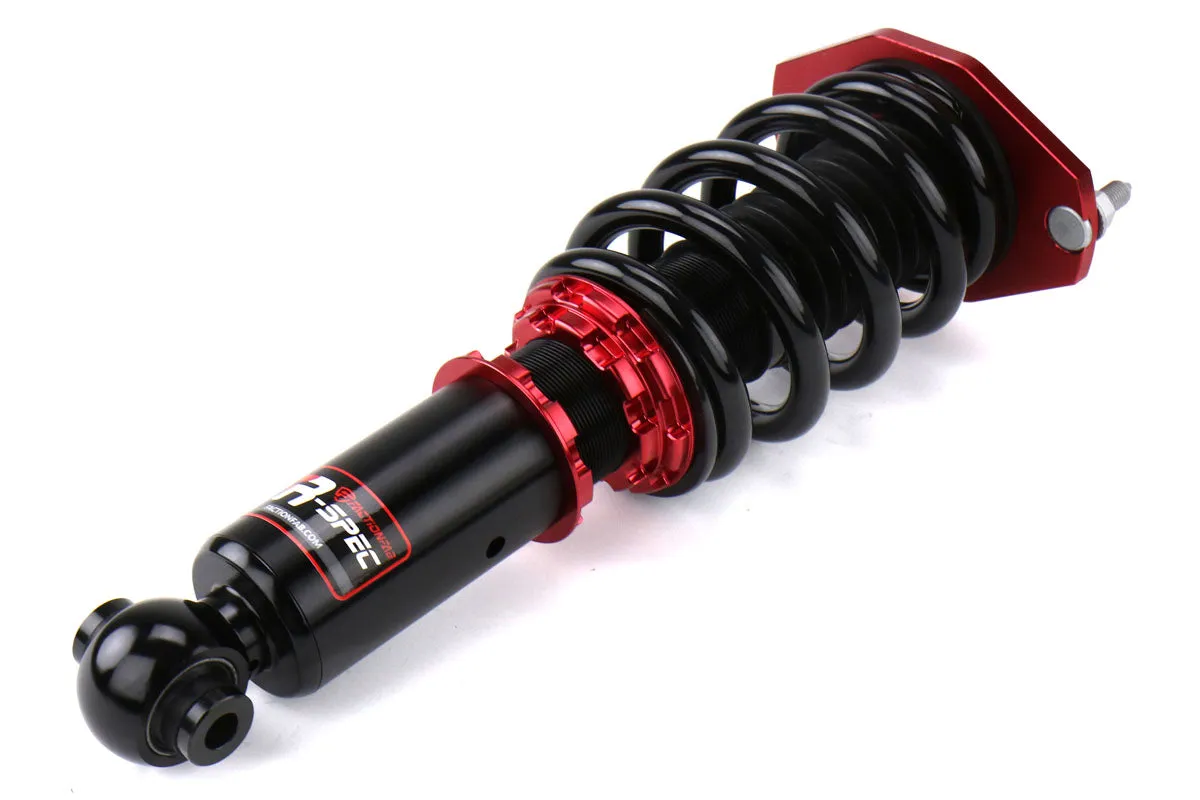

FR-Spec

• These coilovers have been engineered with aggressive spring rates along with increased damping coefficient in the shocks to deliver the feedback and support needed under high-performance driving conditions.

• Japanese steel tube construction using SAE1010 STKM13c
• Monotube shock design with high-performance mono-tube shock construction allowing for better rider control, fluid life, and thermal fluid stability
• Synthetic high-performance oil
• Independent ride-height adjustability separately from spring pre-load allowing the customer to set the ride height without having to worry about shock travel
• Top hats included allowing this suspension system to be a direct replacement for your factory suspension setup
• Forged 6061 anodized adjustable collars and spring seats for easy adjustment and prolonged cycle life
• Robotic welded and electroplated lower shock mounts for consistent fit and finish
• Dust boots and bump stops for shock protection and longevity
• Individually sold components allowing for replacement or upgrade of components as desired or needed
• Plastic lower spring seat isolator to aid ride height adjustment and reduce unwanted audible noise
